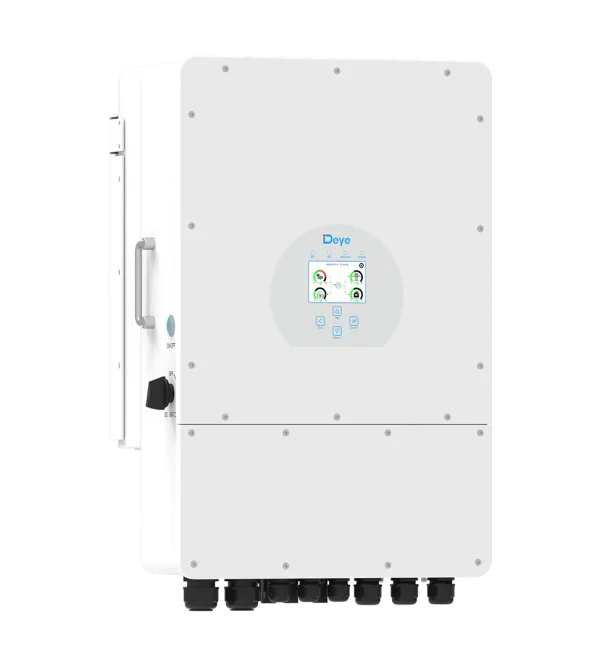

Deye 12kW Inverter

Description

---

Battery Input Data

---

•Battery Type –Lead-acid or Lithium-ion
•Battery Voltage Range(V)– 40-60
•Max.Charging Current(A)– 240
•Max.Discharging Current(A) –240
•Charging Strategy for Li-ion Battery– Self-adaption to BMS
•Number of battery input– 1

---

PV String Input Data

---

•Max PV Input Power（W)– 15600
•MaxPV Input Voltage（V)– 800
•Start-up Voltage（V)– 160
•MPPT Voltage Range（V）–200-650
•Rated PV Input Voltage(V) –550
•Max. Operating PV Input Current (A)–26+13
•Max. Input Short-Circuit Current (A)– 34+17
•No.of MPP Trackers/No.of String Per MPP Tracker 2/2+1

---

AC Input/Output Data

---

•Rated AC Input/Output Active Power（W)–12000
•Max AC Input/Output Apparent Power （VA)–13200
•Peak Power (off-grid)（W)– 2 times of rated power, 10s
•Rated AC Input/Output Current（A)–18.2/17.4
•Max AC Input/Output Current（A)–20/19.1
•Max. Three-phase Unbalanced Output Current（A)– 27.3/26.1
•Max Continuous AC Passthrough (grid to load)（A)– 45
•Rated Input/Output Voltage/Range(V)– 220/380V,230/400V 0.85Un-1.1Un
•Grid Connection Form– 3L+N+PE
•Rated Input/Output Grid Frequency/Range– 50/45-55, 60/55-65
•Power Factor Adjustment Range– 0.8 leading to 0.8 lagging
•Total Current Harmonic Distortion THDi– <3% (of nominal power)
•DC Injection Current– <0.5%ln

---

Efficiency

---

•Max Efficiency– 97.6%
•Euro Efficiency– 97.0%
•MPPT Efficiency –＞99%

---

Equipment Protection

---

•DC Polarity Reverse Connection Protection –YES
•AC Output Overcurrent Protection– YES
•AC Output Overvoltage Protection –YES
•AC Output Short Circuit Protection– YES
•Thermal Protection– YES
•DC Terminal Insulation Impedance Monitoring– YES
•DC Component Monitoring– YES
•Ground Fault Current Monitoring–YES
•Power Network Monitoring –YES
•Island Protection Monitoring– YES
•Earth Fault Detection– YES
•DC Input Switch– YES
•Overvoltage Load Drop Protection– YES
•Residual Current (RCD) Detection –YES
•Surge Protection Level– TYPE II(DC), TYPE II(AC)

---

Interface

---

•Communication Interface– RS485/RS232/CAN
•Monitor Mode –GPRS/WIFI/Bluetooth/4G/LAN(optional)

---

General Data

---

•Operating Temperature Range– -40 to +60℃, >45℃ Derating
•Permissible Ambient Humidity –0-100%
•Permissible Altitude– 2000m
•Noise– ≤ 55 dB(A)
•Ingress Protection(IP) Rating –IP 65
•Inverter Topology– Non-Isolated
•Over Voltage Category –OVC II(DC),OVC III(AC)
•Cabinet size（W*H*D）[mm]– 422×658×254（Excluding connectors and brackets）
•Weight[kg] –38
•Warranty –5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
•Type Of Cooling– Intelligent air cooling
•Grid Regulation –IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
•Safety EMC/Standard –IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

---
