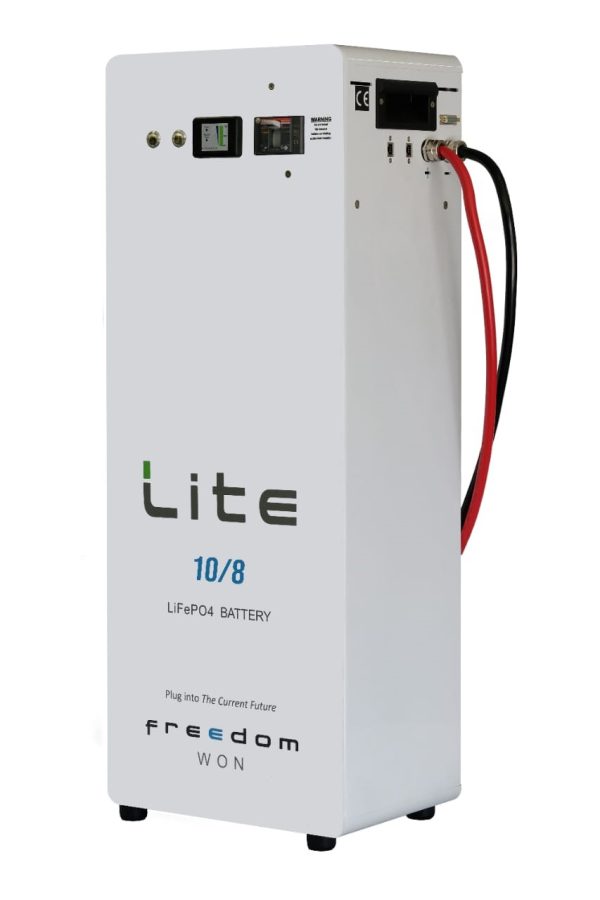

Freedom Won Lite Home 10/8

Description

LiTE Home 10/8
Total Energy Capacity [kWh] 10
Energy, 80% DoD [kWh]  8
Energy, 90% DoD [kWh]  9
Current Capacity [Ah] 200
Max & Cont. Charge Current [A] 200
Max & Cont. Charge Power [kW] 10
Max/Cont. Discharge Current [A]  300/200
Max/Cont. Discharge Power [kW]  15/10
Nominal Voltage [V] 52V, to suit 48V Inverters, min 47V, max 56V
Max Recommended Inverter Total Rated Power (cont.) [kVA] 10
Short Circuit Current [kA] 8
Battery dimensions – H x W x D [mm]  745x340x290
Crated Dimensions – H x W x D [mm] 848x504x509
Battery Weight [kg] 89
Crated Weight [kg] 111
DC Connection – Fly Leads (no. per electrode) [mm²]  1x50mm² Permopower
Enclosure Aluminium enclosure painted white, for use indoors or fully protected under-cover environments, rated
to IP20
Protection
Shunt Trip Circuit Breaker sized to suit max current, can be tripped by BMS if critical fault, manual
reset. Includes overcurrent, cell under and over voltage, temperature, weak cell detection, minimum
SoC control
Control Interface USB Serial protocol for troubleshooting & RJ45 for BMS & inverter communication
Human Interface State of Charge display (0 to 100%), Error light, Error Reset button, USB plug for programming
Warranty  Standard Warranty: 10 years (or 6000 cycles) 80% DoD, 0.5C Max Discharge, 0.25C Max Charge, Max 25°C
Service Life 5 >16 years (>5500 cycles) expected life at 80% DoD 1 >20 years (>7500 cycles) at 50% DoD
Essential Accessories
Note that for connecting the battery to a PC a USB “printer” cable is required (one is supplied with each
battery), CAN Bus Termination Resistor – one required per battery (one included with battery), CAN Bus
cable (RJ45 LAN cable) – one required per battery (not supplied with battery). Note some inverters will
require a special (non-standard pin configuration) cable – see installation manual
