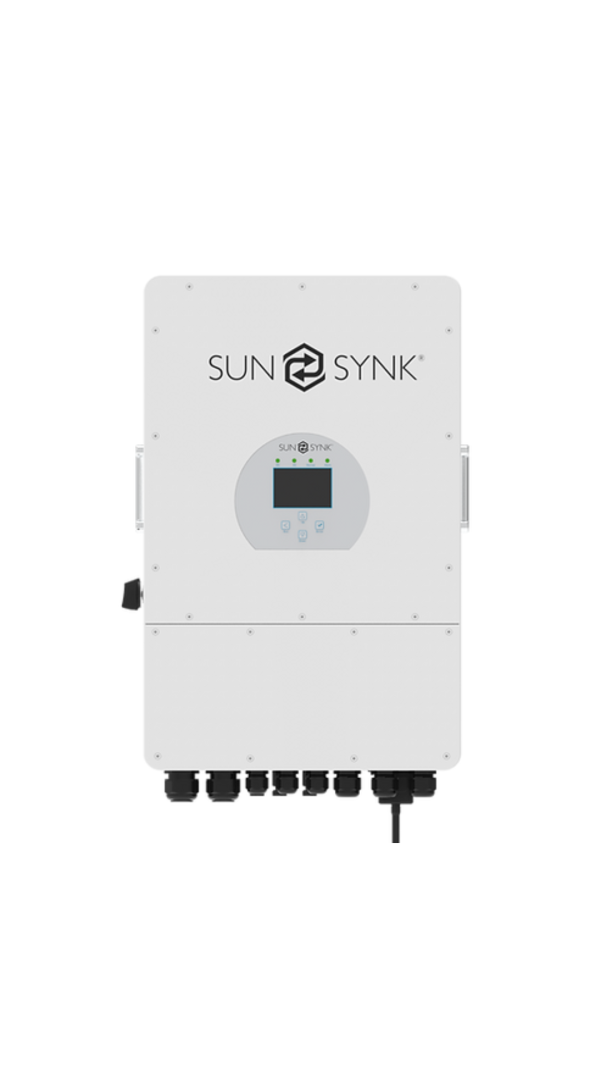

Sunsynk 12kW Inverter

Description

•Product Type –Hybrid Inverter

•Enclosure– IP65

•Ambient Temperature– -45ºC ~ 60ºC (>45ºC derating)

•Protection Level– Class I

•Charge Mode
Battery Voltage– 48Vd.c (40Vd.c ~ 60Vd.c)
Battery Current– 240Ad.c (max.)
AC Input Voltage –3L/N/PE 220/380Va.c, 400Va.c
AC Input Frequency –50/60Hz
AC Input Rated Current –18.2Aa.c
Max. AC Input Current– 27.3Aa.c (max.)
Max. AC Input Power –13200W
Max. Apparent Output Power– 13200VA
PV Input Voltage –550Vd.c (160Vd.c ~ 800Vd.c)
MPPT Input Voltage– 200Vd.c ~ 650Vd.c
PV Input Current– 26Ad.c + 13Ad.c
Max. PV Input Power –15600W
Max. PV Isc–34Ad.c + 17Ad.c

•Utility-Interactive
AC Output Voltage– 3L/N/PE 220/380Va.c, 400Va.c
AC Output Frequency– 50/60Hz
AC Output Rated Current– 18.2Aa.c
Max. AC Output Current– 27.3Aa.c (max.)
Max. AC Output Power –13200W
AC Output Rated Power– 12000W
AC Output Power Factor– 0.95 leading to 0.95 lagging
Max. AC Isc –75Aa.c
Battery Discharge Voltage– 40Vd.c ~ 60Vd.c
Battery Discharge Current– 240Ad.c (max.)
Battery Discharge Power –12000W

•Stand Alone
AC Output Voltage– 3L/N/PE 220/380Va.c, 400Va.c
AC Output Frequency– 50/60Hz
AC Output Rated Current– 18.2Aa.c
AC Output Rated Power– 12000W
Max. Continuous AC Pass-through Current –45Aa.c
Peak Output Power– 24000W (10 seconds)
Battery Discharge Voltage–40Vd.c ~ 60Vd.c
Max. Discharge Current– 240A (max.)
