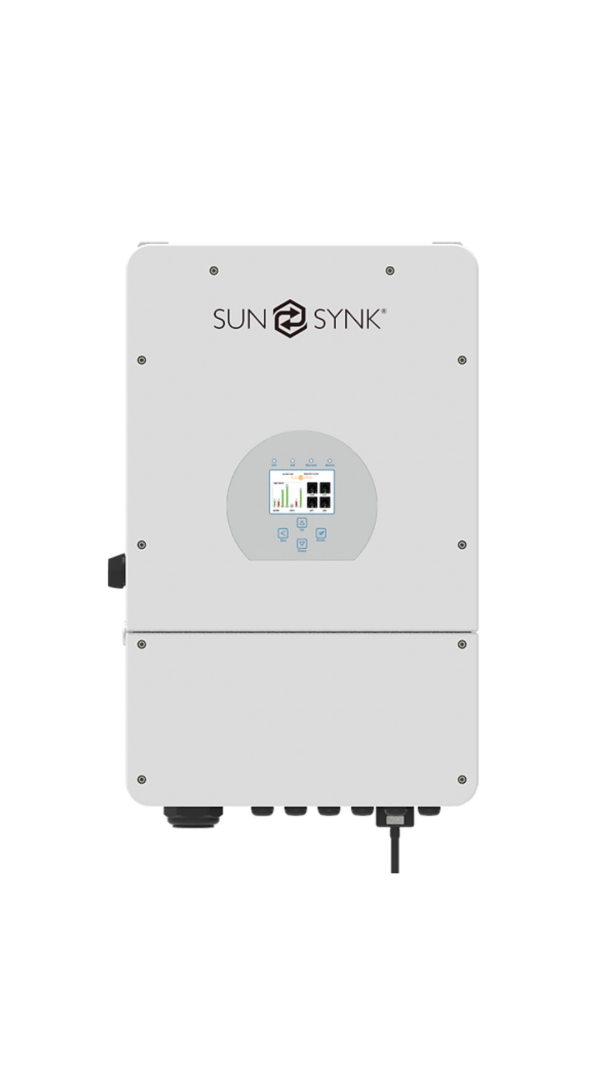

Sunsynk 16kW Inverter

Description

•Battery Input Data
Battery Type– Lead-acid or Lithium-ion
Battery Voltage Range– 43~60V
Max. Charge Current –300A
Max. Discharge Current– 300A
Charging Curve– 3 Stages/Equalisation
External Temperature Sensor– Yes
Charging Strategy for Li-Ion Battery– Self-Adaptation to BMS
•PV String Input Data
Max. DC Input Power– 18000W
Max PV Input Voltage –450V
MPPT Range– 250V~450V
Start-up Voltage –150V
PV Input Current– 26A + 26A + 26A
Max. PV Isc– 26A + 26A + 26A
No. of MPPT / Strings Per MPPT– 3 / 2

•AC Output Data
Max. On-Grid AC Power –16000W
Max. Off-Grid AC Power– 13000W
Peak Power (off-grid)– 2 times of rated power, 10 S
AC Output Rated Current– 65A
Max AC Current –70A
Max Continuous AC Passthrough– 150A
Bypass Current –150A
Frequency Range –45Hz ~55Hz
Voltage Range– 211V ~ 264V
Grid Type– Single-Phase
Current Harmonic Distortion– THD<3%(Linear load<1.5%)

•Efficiency
Max. Efficiency– 97.60%
Euro Efficiency– 97.00%
MPPT Efficiency– 99.90%

•Protection
Integrated–PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection, DC Battery Current Protection

•General Data
Operating Temperature Range– -25~55°C
Cooling– Fan
Noise– <30dB
Communication with BMS –RS485; CAN
Weight– 34.5kg
Size– 422W×702H×281D mm
Protection Degree– IP65
Installation Style– Wall-mounted
