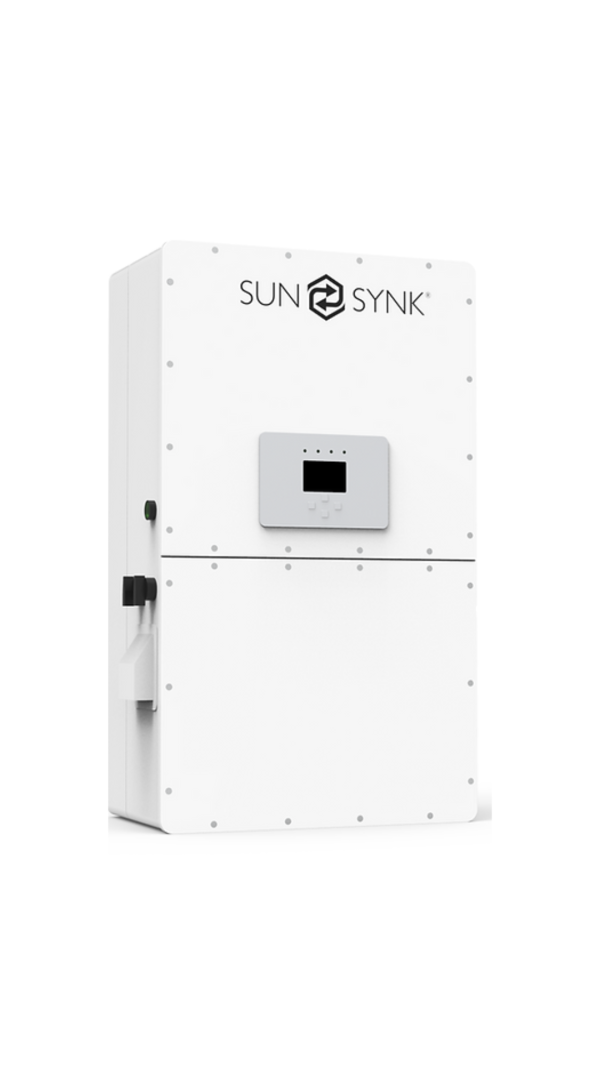

Sunsynk 50kW Inverter

Description

•Battery Type –Li-Ion

•Battery Voltage Range– 160~800V

•Max. Charging Current –50A+50A

•Max. Discharging Current –50A+50A

•Number of battery input –2

•Charging Strategy for Li-lon Battery– Self-adaption to BMS

•PV String Input Data
Max. DC Input Power– 65000W
Max. DC Input Voltage –1000V
Start-up Voltage –180V
MPPT Range –150-850V
Full Load DC Voltage Range– 450-850V
Rated DC Input Voltage 600V
PV Input Current–36+36+36+36A
Max.PV Isc – 55+55+55+55A
No. Of MPPT Trackers – 4
No. Of Strings Per MPPT Tracker – 2+2+2+2

•AC Output Data
Rated AC Output and UPS Power –50000W
Max. AC Output Power– 55000W
Peak Power(off grid) –1.5 time of rated power, 10 S
AC Output Rated Current– 75.8/72.5A
Max. AC Current– 83.4/79.8A
Max. Three-phase Unbal-anced Output Current–83.3A
Max. Continuous AC Pass through– 200A
Power Factor– 0.8 leading to 0.8 lagging
Output Frequency and Voltage –50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type– Three Phase
Total Harmonic Distortion (THD) –<3% (of nominal power)
DC injection current (mA) –<0.5%In

•Efficiency
Max. Efficiency– 97.60%
Euro Efficiency– 97.00%
MPPT Efficiency– >99%

•General Data
Operating Temperature Rande– -40~60 ºC, >45 ºC Derating
Cooling Intelligent air cooling Noise– ≤65 dB
Communication with BMS –RS485; CAN
Weight– 88kg
Size– 527W×894H×294D mm
Protection Degree –IP65
Installation Style– Wall-mounted
